| Power | 315 KW |
| Country of Origin | Made in India |

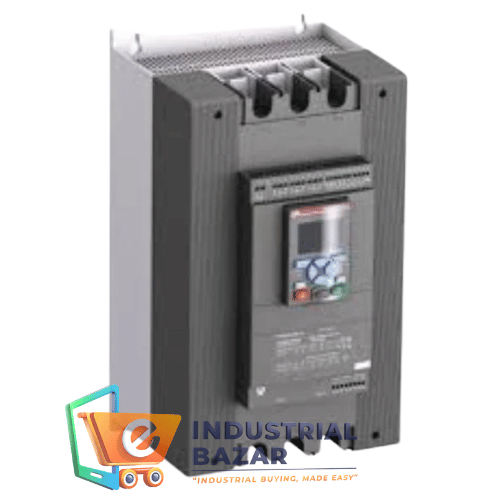

| Model Name/Number | ABB PSTX Soft Starter |
| Motor Current | 30-1250 A |
| Motor Voltage | 208-600 V AC |
| Model Series | PSTX30 -1250 A |
| Rated Operational Current Range | 30A to 1250A |
| Rated Operational Voltage | 208…600 V,208…690V +10% / -15%,50/60Hz +/-10% |
| Rated Insulation Voltage | 690V |
| Rated Control Supply Voltage | 100 to 250 V +10% / -15%,50/60Hz +/-10% |
| Rated Control Circuit Voltage | Internal or external 24 V DC |
| Number Of Starts Per Hour | 10 for PSTX30 … PSTX370; 6 for PSTX470 … PSTX1250 |
| Built-In Bypass | Available |
| Fieldbus | Built-in Modbus RTU ;Connection for Anybus ;Connection for ABB FieldBusPlug (with adapter) |
| Cooling System | Fan cooled (thermostat controlled) |
| Display | LCD type Display,graphical |
| Keypad | Detachable keypad,2 selection,4 navigation,1 start,1 stop key,info key & remote/local key |
| Number Of Programmable Signal Relays | 3 Relay output (each can be programmed to None,Run,Top of ramp) |
| Ip Degree Of Protection | Supply and control circuit IP20 |
| Ambient Temperature | During operation -25…+60 deg C,(-13…+140 F) 2) |
| Brand | ABB |
| Application | Crushers, Pumps, Fans/Blowers, Compressors, Saw |
The advance Range:
Rated Motor Current-30-1250A Inside Delta 2160A
Main motor Voltage -208-600VAC
Other Details
Environmental LimitsAmbient Temperature During operation -25 to +60 Degree C, (-13 to +140 F) 2), During storage -40 to +70 Degree C, (-40 to +158 F)
Start and Stop Functions
- Soft start with a voltage ramp
- Soft stop with the voltage ramp
- Soft start with torque control
- Soft stop with torque control
- Kickstart
- Full voltage start
- Sequence start 3 different sets of settings
- Current limit
- Dual current limit
- Current limit ramp
- Torque limit
- Pre-start function (Motor heating or Stand still brake)
- Jog with slow speed, forward and reverse (3-speed levels)
- Start reverse
- Dynamic brake
Additional Information:
- Item Code: ABB.PTX
- Production Capacity: 10
- Delivery Time: REDAY TO STOKE
- Packaging Details: BOX PACKED
